Generate Image V2

Welcome to the new and improved Generate Image V2 experience in the Adobe Express Embed SDK! This upgraded version brings a host of exciting enhancements designed to empower your creative journey.

Features overview

In redesigning the Generate Image module, we've focused on making the image generation process more engaging, efficient, and inspiring. The new User Interface offers a fresh look and feel, with a Carousel and Grid view that make it easier to browse and select images.

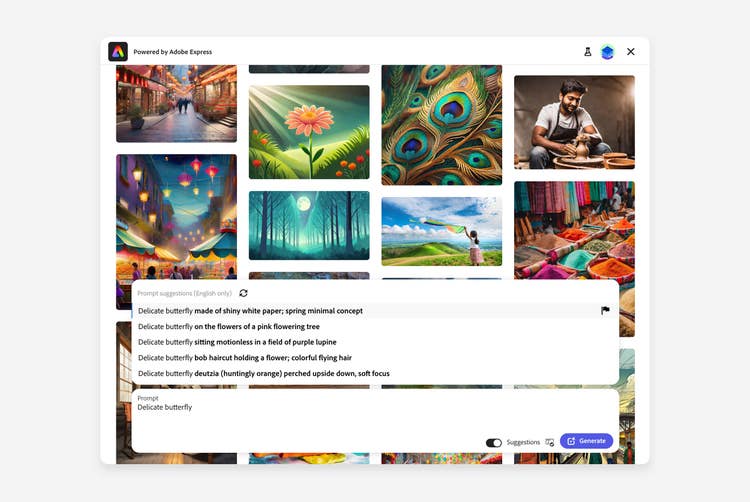

Upon launching the module, you'll be greeted by an endless array of user-generated images on the Community Wall, that provide plenty of inspiration for your projects. The Improved Prompt Bar helps you with pop-up suggestions to craft the perfect prompt.

Rich Previews offer a more interactive and engaging preview experience, while with Fast Mode you can cut the generation time when fewer details and smaller sizes are enough.

Lastly, Custom Firefly Models allow enterprise users to tailor outputs to unique brand or project requirements.

How to enable the new experience

Generate Image v2 is, at the moment, disabled by default, with the classic interface displayed. To activate the new experience, you need to set the new appVersion property to the string "2" in the appConfig object.

Copy
await import("https://cc-embed.adobe.com/sdk/v4/CCEverywhere.js");

const { module } = await window.CCEverywhere.initialize(
  { clientId: "your-client-id", appName: "your-app-name" },
  {}
);

const appConfig = {
  appVersion: "2", // 👈 Enable the new experience
  // ...
};

module.createImageFromText(appConfig, {});
Copied to your clipboard
await import("https://cc-embed.adobe.com/sdk/v4/CCEverywhere.js");

const { module } = await window.CCEverywhere.initialize(
  { clientId: "your-client-id", appName: "your-app-name" },
  {}
);

const appConfig = {
  appVersion: "2", // 👈 Enable the new experience
  // ...
};

module.createImageFromText(appConfig, {});

Feature configurations

The new experience introduces several new feature configurations to the TextToImageAppConfig object. They can be independently enabled or disabled to customize the module according to your needs.

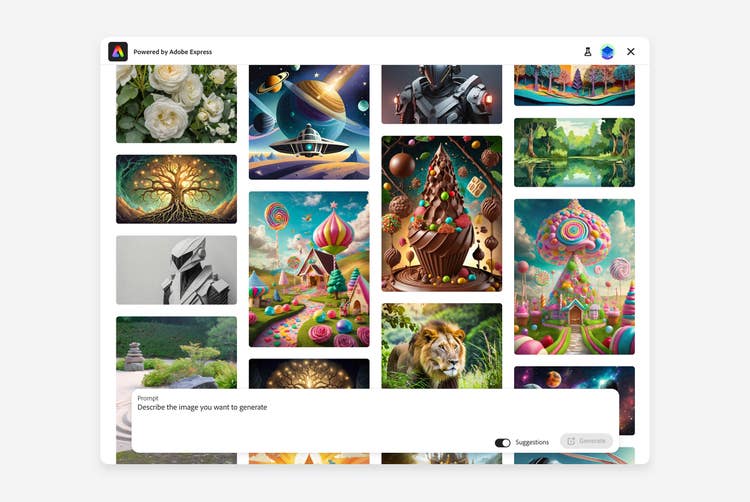

Community Wall

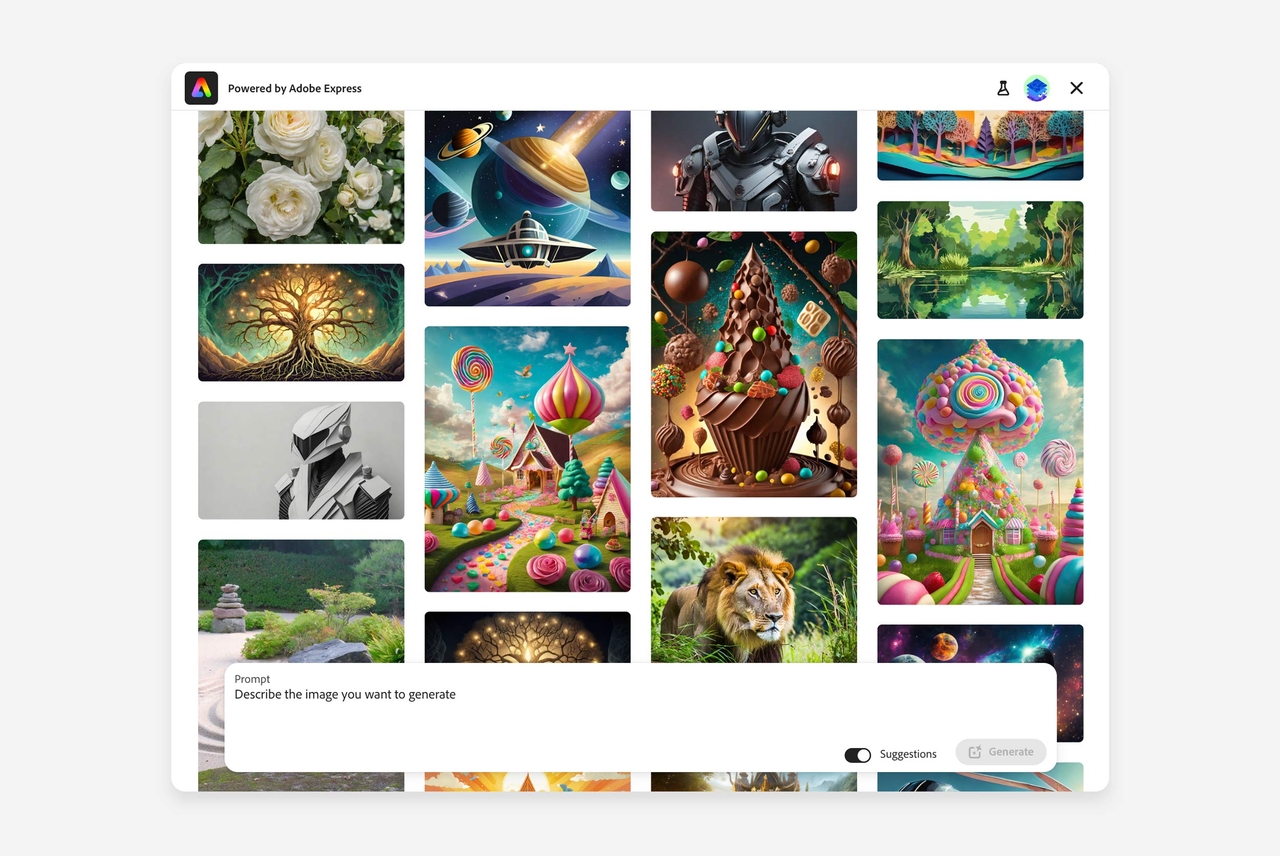

The infinite-scroll collection of user-generated images with prompts is controlled by the boolean community-wall property of the featureConfig object:

Copy
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true, // 👈 Enable the Community Wall
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true, // 👈 Enable the Community Wall
  },
};

When enabled, the Community Wall will be displayed upon launching the module; each image can be selected to preload the prompt and generate a new image, varying the other settings as needed. It's possible to customize the Community Wall by providing your images; please see this section for instructions.

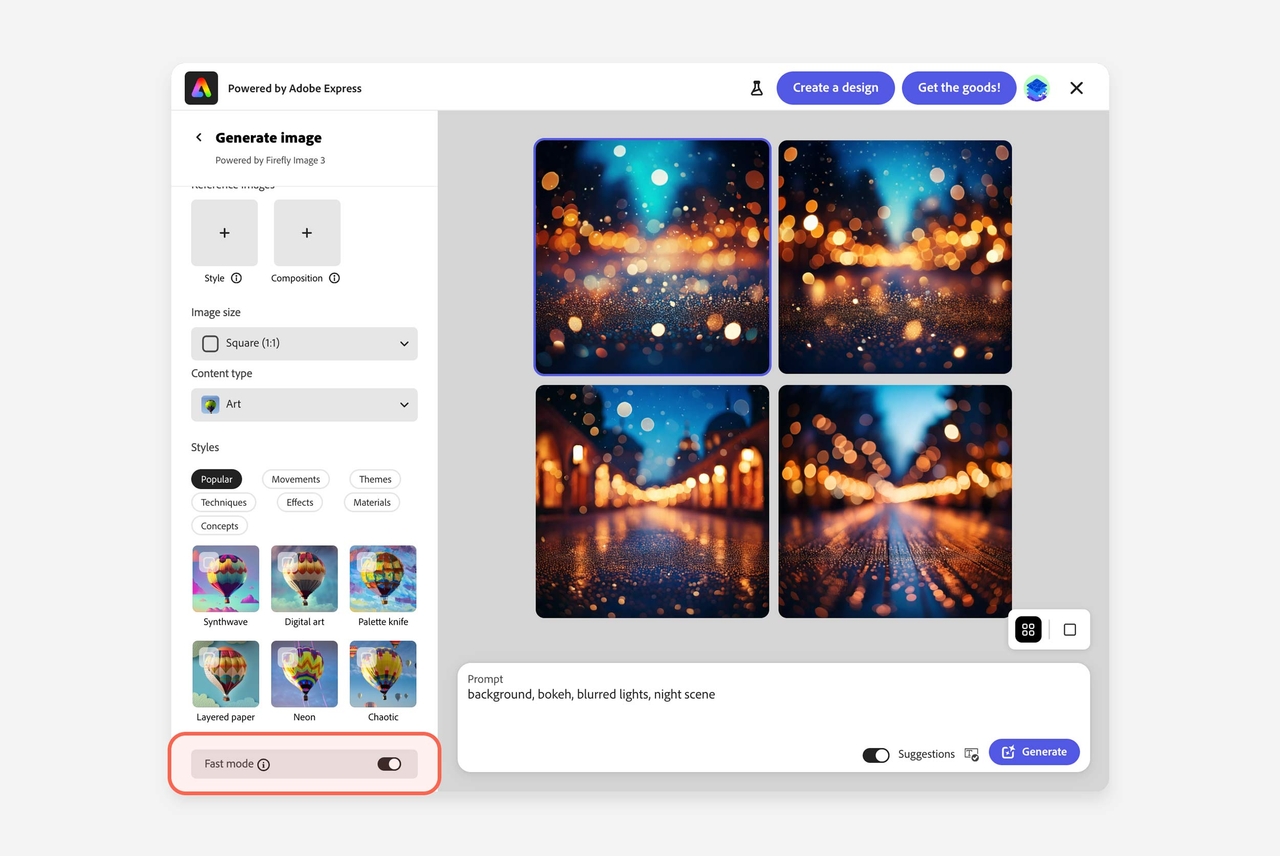

Fast Mode

This new option allows for faster generation of smaller images (1K, or 1024x1024 for a 1:1 ratio, compared to the usual 2K, or 2048x2048) with fewer details. It's a great choice when timely generations are needed, and less precision doesn't matter, for example, in backgrounds, or simpler illustrations. The same featureConfig object allows you to toggle the fast-mode boolean:

Copy
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true,
    "fast-mode": true, // 👈 Enable Fast Mode
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true,
    "fast-mode": true, // 👈 Enable Fast Mode
  },
};

When enabled, a Fast Mode switch will be visible a the bottom of the generation options. To control its default state there's an additional fastModeConfig object property, whose defaultFastModeState can be set to "on" or "off":

Copy
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true,
    "fast-mode": true, // 👈 Enable Fast Mode
    fastModeConfig: {
      defaultFastModeState: "on", // 👈 Set Fast Mode on by default
    },
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true,
    "fast-mode": true, // 👈 Enable Fast Mode
    fastModeConfig: {
      defaultFastModeState: "on", // 👈 Set Fast Mode on by default
    },
  },
};

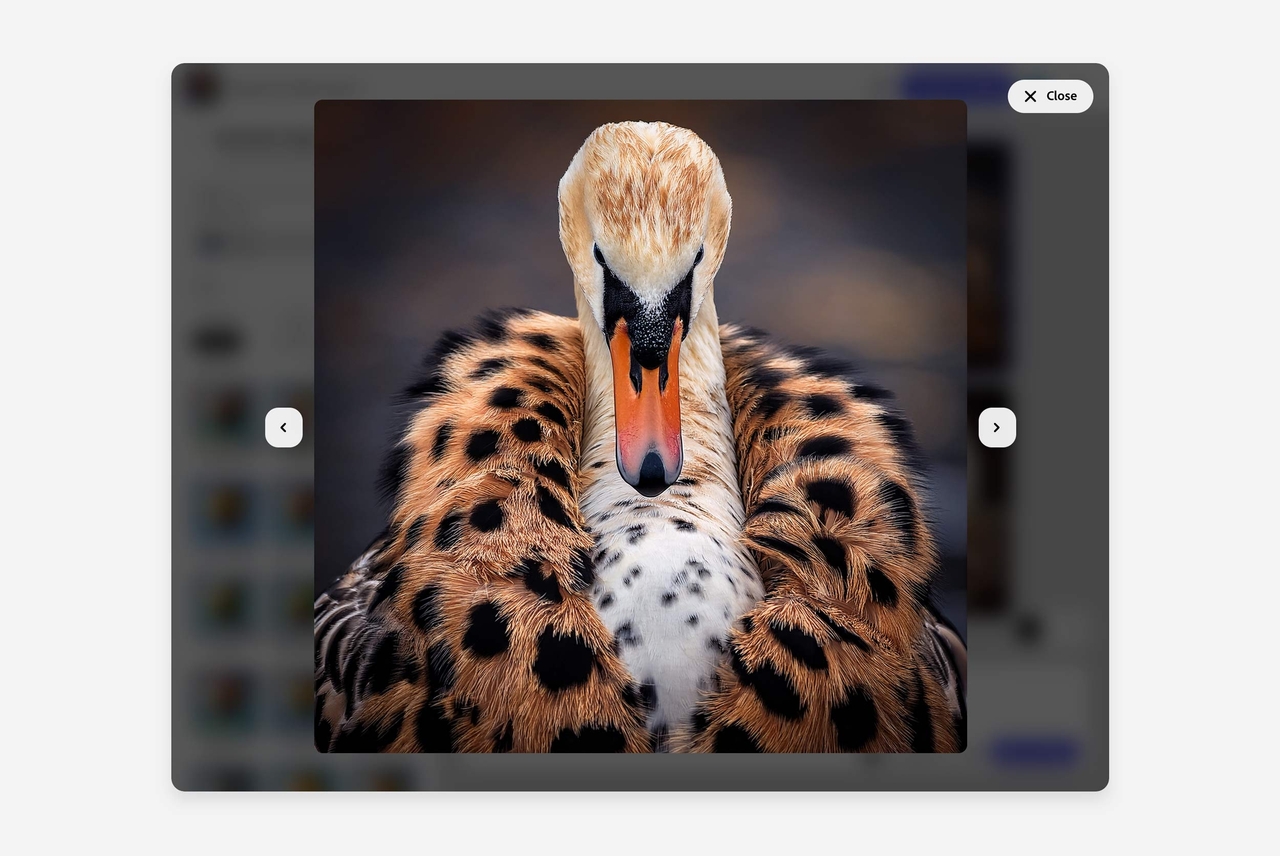

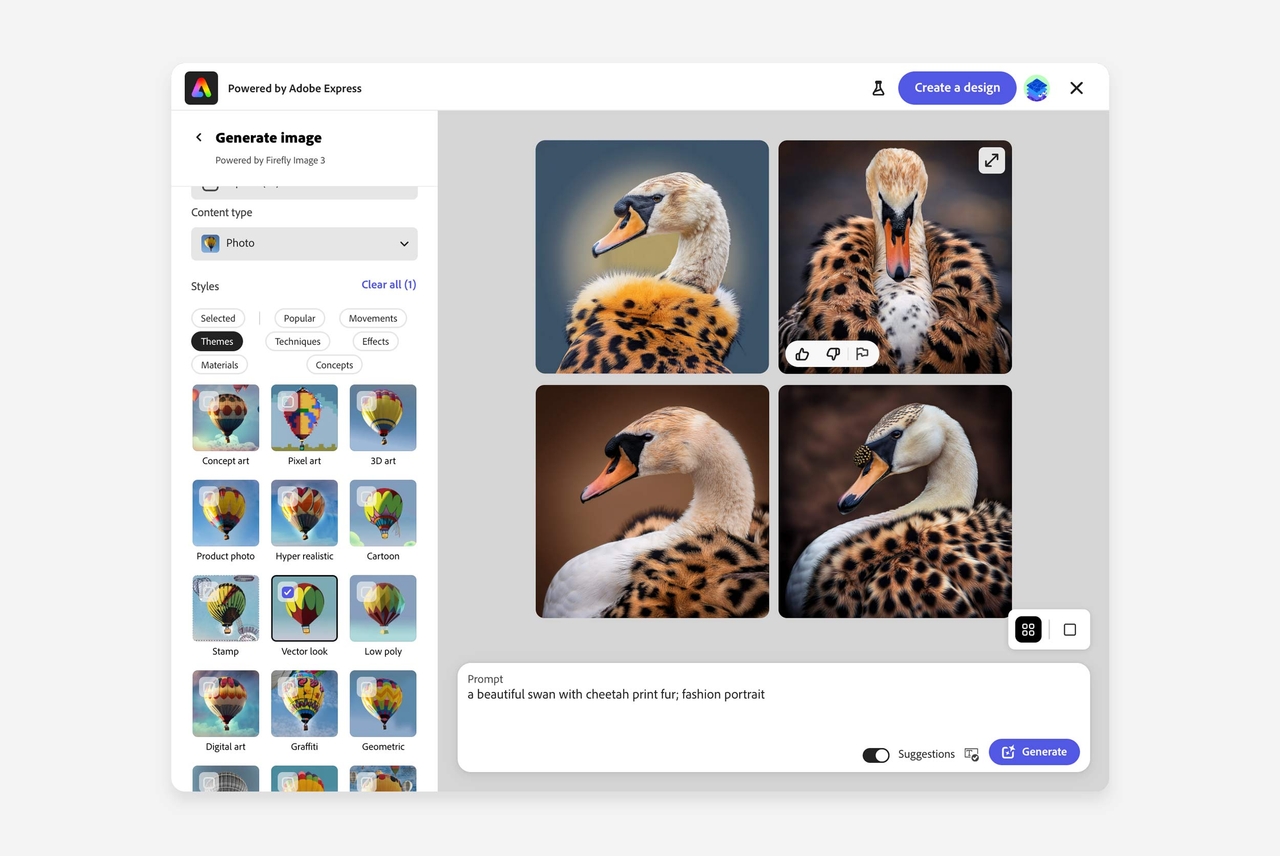

Rich Preview

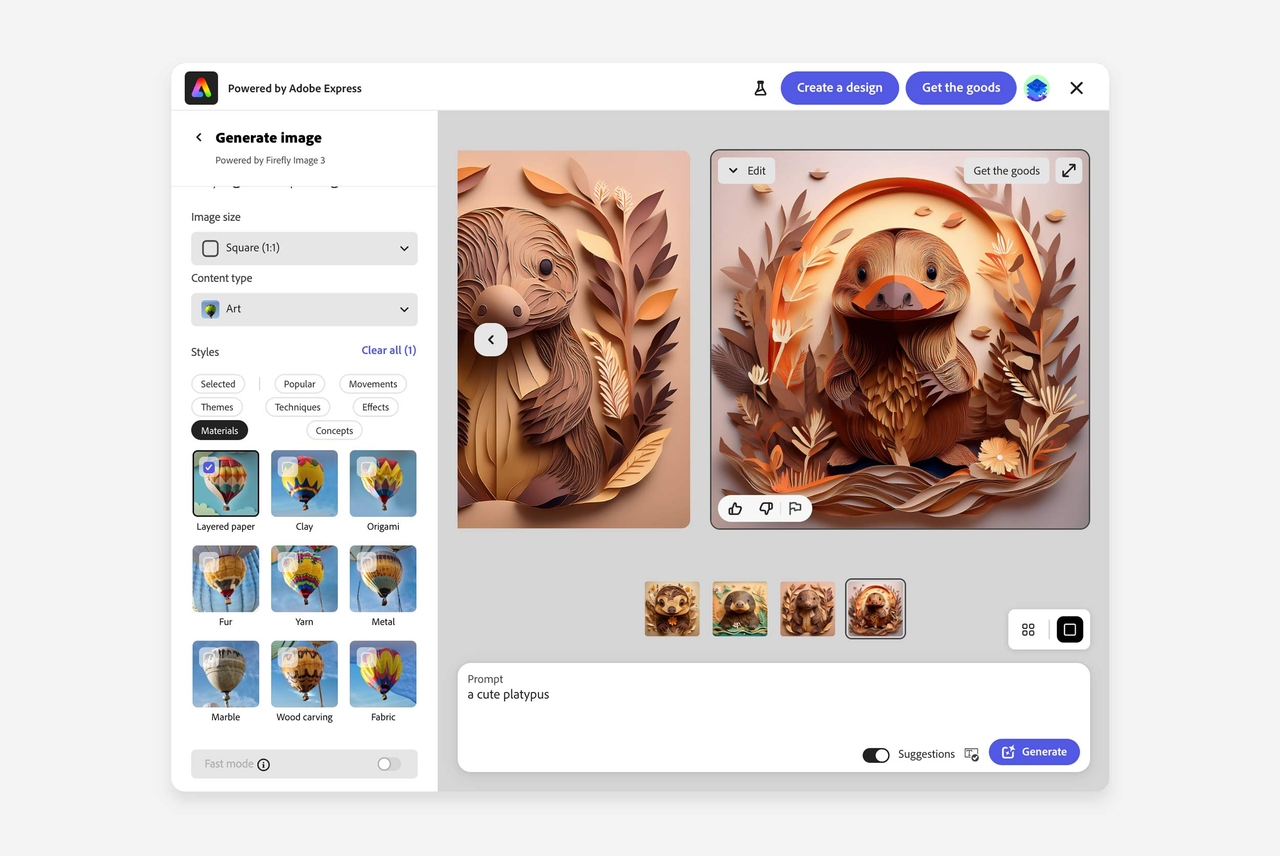

In addition to the Grid and Carousel view, the new experience introduces the possibility to isolate one of the four generated images, and display it in a larger, focused preview. This feature is controlled by the thumbnailOptions property of the appConfig object, which array can now include "rich-preview":

Copy
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["rich-preview"],
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["rich-preview"],
};

Thumbnail Actions

You now have a set of actions you can immediately perform on the generated image. You can allow your user to transfer the image directly to the editor. These actions are collected in a dropdown menu within the thumbnail. They include adding text, cropping, and applying filters. Similar to the Rich Preview, these actions are controlled by the thumbnailOptions property of the appConfig object, which array can now include "edit-dropdown". Additionally, the actual options are set in the editDropdownOptions array, as option objects:

Copy
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["edit-dropdown"], // 👈 Enable the Edit dropdown
  editDropdownOptions: [
    // 👈 Set the options for the Edit dropdown
    { option: "add-effects" },
    { option: "remove-background" },
    { option: "apply-adjustment" },
    { option: "insert-object" },
    { option: "remove-object" },
  ],
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["edit-dropdown"], // 👈 Enable the Edit dropdown
  editDropdownOptions: [
    // 👈 Set the options for the Edit dropdown
    { option: "add-effects" },
    { option: "remove-background" },
    { option: "apply-adjustment" },
    { option: "insert-object" },
    { option: "remove-object" },
  ],
};

For an updated list of all the available options, refer to the EditFurtherIntent enumeration.

Publish

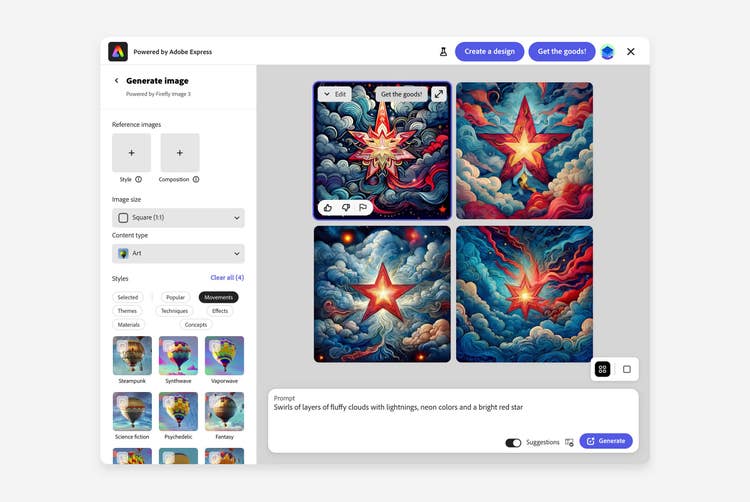

The SDK also introduces the possibility of running a publish callback for the generated image directly from the module. Label and ID of this feature are controlled by the publishConfig property of the appConfig object, which can include the following options:

Copy
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["publish"], // 👈 Enable the Publish action
  publishConfig: {
    id: "saveToHostApp",
    label: "Get the goods!",
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  thumbnailOptions: ["publish"], // 👈 Enable the Publish action
  publishConfig: {
    id: "saveToHostApp",
    label: "Get the goods!",
  },
};

The publishConfig object should match the same id and label of the publish callback in the host app.

Copy
const exportConfig = [
  {
    action: {
      target: "publish",
      outputType: "base64",
      closeTargetOnExport: true,
    },
    id: "saveToHostApp", // 👈 Match the ID
    label: "Get the goods!", // 👈 Match the label
    style: {
      uiType: "button",
    },
  },
];
Copied to your clipboard
const exportConfig = [
  {
    action: {
      target: "publish",
      outputType: "base64",
      closeTargetOnExport: true,
    },
    id: "saveToHostApp", // 👈 Match the ID
    label: "Get the goods!", // 👈 Match the label
    style: {
      uiType: "button",
    },
  },
];

Custom Firefly Models

Before you begin

Ensure that you have the right plan! Firefly custom models are available to organizations that use Adobe storage for business, a feature that's being rolled out globally in a phased manner.

Enable Custom Firefly Models

The new experience let you select fine-tuned Firefly Models, in addition to the standard generation model. This allows enterprise users to tailor the generated images to their unique brand or project requirements.

Provided that you have trained and uploaded your custom models, you can enable the Custom Firefly Models feature by setting the custom-models boolean property of the featureConfig object:

Copy
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "custom-models": true, // 👈 Enable Custom Firefly Models
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "custom-models": true, // 👈 Enable Custom Firefly Models
  },
};

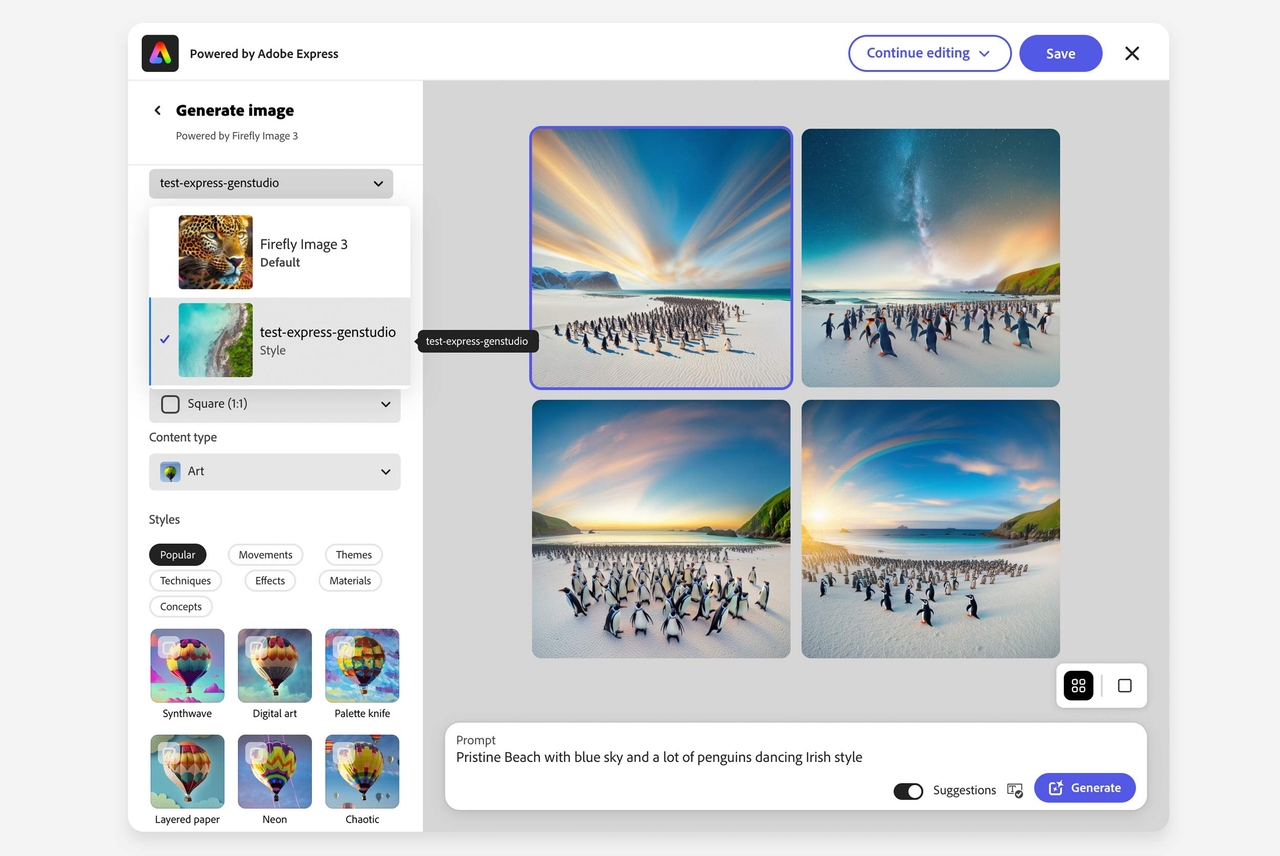

When enabled, the Custom Firefly Models dropdown will appear above all other generation options, allowing you to select the desired model. If your organization does not have a Custom Model enabled, the default model is used and the message "Powered by Firefly Image 3" is displayed in place of the dropdown.

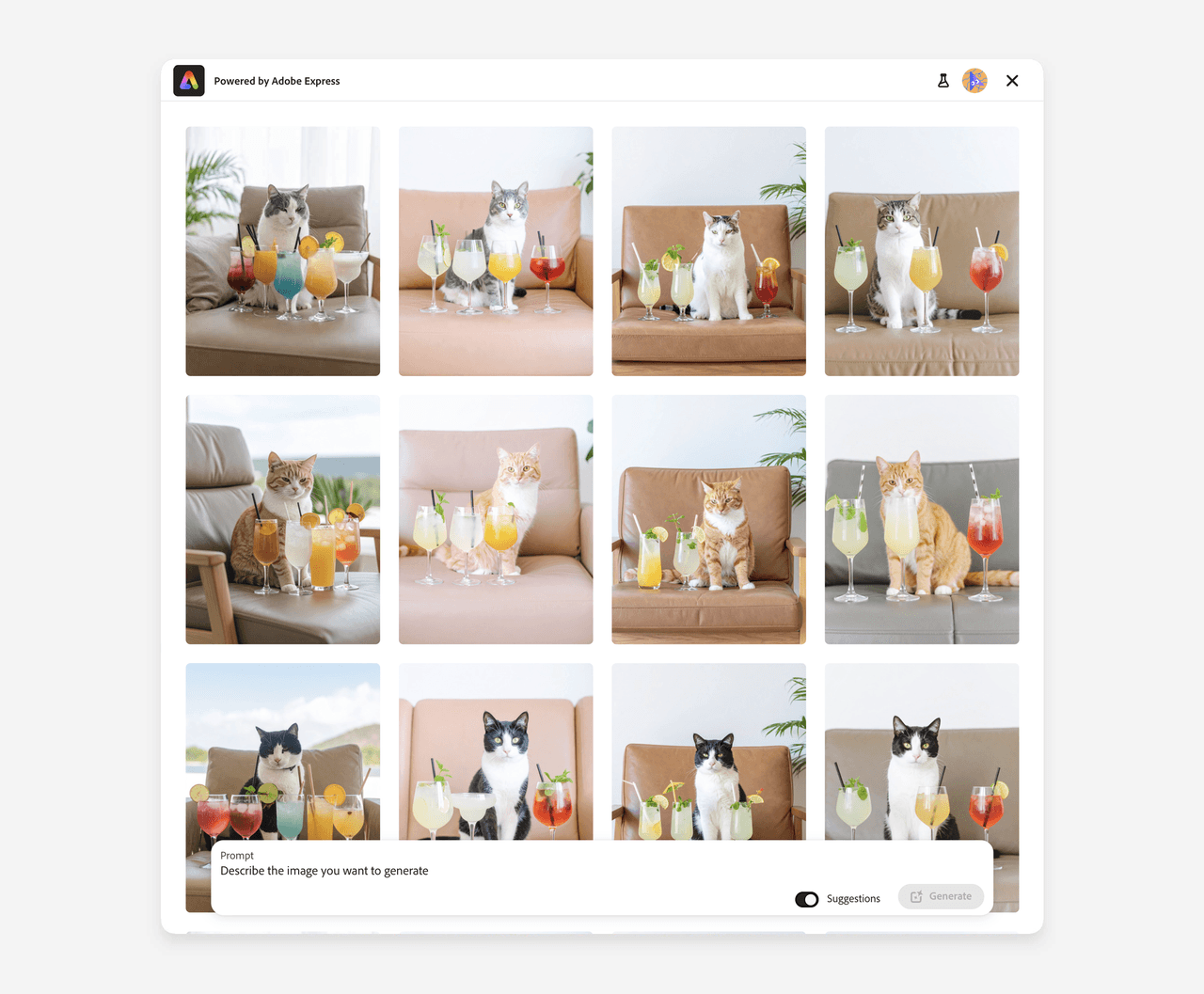

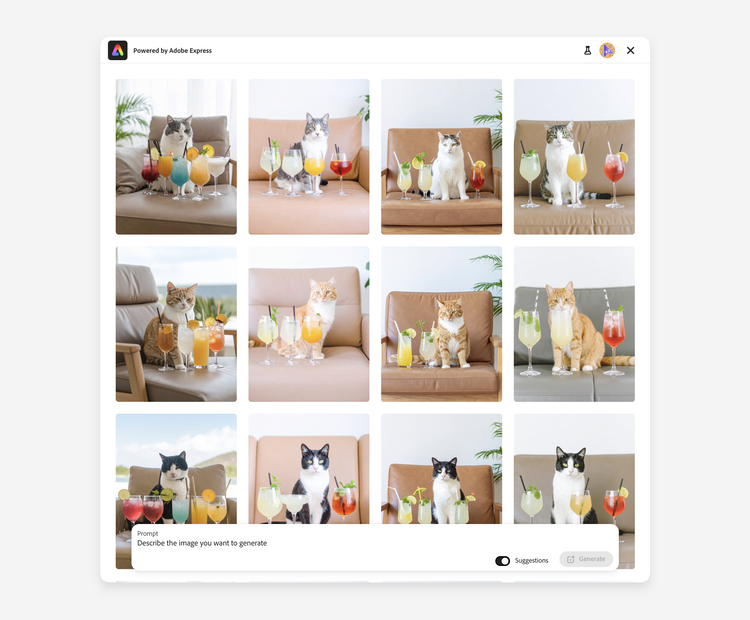

Custom Community Wall

The Community Wall is now able to showcase your custom images instead of Firefly's publicly available gallery.

To enable the Custom Community Wall, you need to supply a communityWallConfig object to appConfig when you launch Generate Image v2.

The communityWallConfig object

Copy
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true, // 👈 still turn the wall on
  },
  communityWallConfig: {
    // 👇 your own data-loader
    fetchCommunityAssets: myFetchCommunityAssets,
  },
};
Copied to your clipboard
const appConfig = {
  appVersion: "2",
  featureConfig: {
    "community-wall": true, // 👈 still turn the wall on
  },
  communityWallConfig: {
    // 👇 your own data-loader
    fetchCommunityAssets: myFetchCommunityAssets,
  },
};

The fetchCommunityAssets callback

The fetchCommunityAssets property is nothing but a callback function that you need to implement, designed to fetch a list of your assets in a paginated way.

The function is called with a limit and cursor parameters. The limit is the number of assets to retrieve at any given time, and the cursor is used to keep track of the batch of assets to fetch next.

The cursor defaults to "Start_Page" on the first call, and you can send "Last_Page" when there are no more custom assets to fetch. At that point, the module will stop asking for more data.

The fetchCommunityAssets callback signature

Copy
async function myFetchCommunityAssets(
  limit: number,
  cursor: string // "Start_Page" on the first call, "Last_Page" on the last call
): Promise<CommunityWallAssetReponse> {
  /* …fetch and return your data… */
}
Copied to your clipboard
async function myFetchCommunityAssets(
  limit: number,
  cursor: string // "Start_Page" on the first call, "Last_Page" on the last call
): Promise<CommunityWallAssetReponse> {
  /* …fetch and return your data… */
}

The fetchCommunityAssets asynchronous callback should return a Promise that resolves to a CommunityWallAssetReponse object.

Copy
interface CommunityWallAssetReponse {
  assets: CommunityWallAssetData[];
  cursor: string; // The cursor for the next page of assets.
}
Copied to your clipboard
interface CommunityWallAssetReponse {
  assets: CommunityWallAssetData[];
  cursor: string; // The cursor for the next page of assets.
}

Asset schema

The assets array contains the asset objects to display in the Community Wall.

Copy
interface CommunityWallAssetData {
  assetId: string; // Asset ID for the community asset
  title: string; // Prompt for the thumbnail item
  thumbnailSrc: string; // Source of the thumbnail image as a base64 string
  fullRenditionSrc: string; // Source of the full rendition image for OneUp view as a base64 string
  height: number; // Height of the thumbnail image
  width: number; // Width of the thumbnail image
  ownerInfo?: {
    // Optional: Information about the owner
    name: string; // Owner's display name
    imgSrc: string; // Source URL of the owner's image
  };
}
Copied to your clipboard
interface CommunityWallAssetData {
  assetId: string; // Asset ID for the community asset
  title: string; // Prompt for the thumbnail item
  thumbnailSrc: string; // Source of the thumbnail image as a base64 string
  fullRenditionSrc: string; // Source of the full rendition image for OneUp view as a base64 string
  height: number; // Height of the thumbnail image
  width: number; // Width of the thumbnail image
  ownerInfo?: {
    // Optional: Information about the owner
    name: string; // Owner's display name
    imgSrc: string; // Source URL of the owner's image
  };
}

We have guardrails in place for the aspect ratio of the assets, to ensure that they are displayed correctly in the Community Wall. Assets outside these ranges are skipped and a console error is logged.

Example loader

Copy
async function myFetchCommunityAssets(
  limit: number,
  cursor: string
): Promise<CommunityWallAssetReponse> {
  try {
    // In a real implementation, you would likely fetch from an API endpoint
    const response = await fetch(
      `https://your-api.com/community-assets?limit=${limit}&cursor=${cursor}`
    );

    if (!response.ok) {
      throw new Error(`Failed to fetch assets: ${response.status}`);
    }

    const data = await response.json();

    // Transform API response to match expected format if needed
    const assets = data.items.map((item) => ({
      assetId: item.id,
      title: item.prompt,
      thumbnailSrc: item.thumbnail, // base64 encoded string
      fullRenditionSrc: item.fullImage, // base64 encoded string
      height: item.dimensions.height,
      width: item.dimensions.width,
      ownerInfo: item.creator
        ? {
            name: item.creator.displayName,
            imgSrc: item.creator.avatarUrl,
          }
        : undefined,
    }));

    return {
      assets,
      cursor: data.nextCursor || "Last_Page",
    };
  } catch (error) {
    console.error("Error fetching community assets:", error);
    throw error; // Propagate error to be handled by the SDK
  }
}
Copied to your clipboard
async function myFetchCommunityAssets(
  limit: number,
  cursor: string
): Promise<CommunityWallAssetReponse> {
  try {
    // In a real implementation, you would likely fetch from an API endpoint
    const response = await fetch(
      `https://your-api.com/community-assets?limit=${limit}&cursor=${cursor}`
    );

    if (!response.ok) {
      throw new Error(`Failed to fetch assets: ${response.status}`);
    }

    const data = await response.json();

    // Transform API response to match expected format if needed
    const assets = data.items.map((item) => ({
      assetId: item.id,
      title: item.prompt,
      thumbnailSrc: item.thumbnail, // base64 encoded string
      fullRenditionSrc: item.fullImage, // base64 encoded string
      height: item.dimensions.height,
      width: item.dimensions.width,
      ownerInfo: item.creator
        ? {
            name: item.creator.displayName,
            imgSrc: item.creator.avatarUrl,
          }
        : undefined,
    }));

    return {
      assets,
      cursor: data.nextCursor || "Last_Page",
    };
  } catch (error) {
    console.error("Error fetching community assets:", error);
    throw error; // Propagate error to be handled by the SDK
  }
}

Error handling

• The fetchCommunityAssets Promise is rejected: the Community Wall will display a loading skeleton for thumbnails along with the "Failed to fetch community assets." error toast message. If the initial request fails, the module will retry fetching the assets a couple of times again.
• No assets property returned in the response: the "Could not find any community assets" toast error message will be shown.
• An asset doesn't conform to the expected format: the asset will not be rendered, and "The asset with the given ID could not be rendered due to the following error." will be logged.
• Error fetching the image data for the Community Wall: a broken image or missing image icon will be displayed.
• Error fetching the image data for the OneUp view: a broken image or missing image icon will be displayed, while the associated prompt text will still be shown in prompt bar.

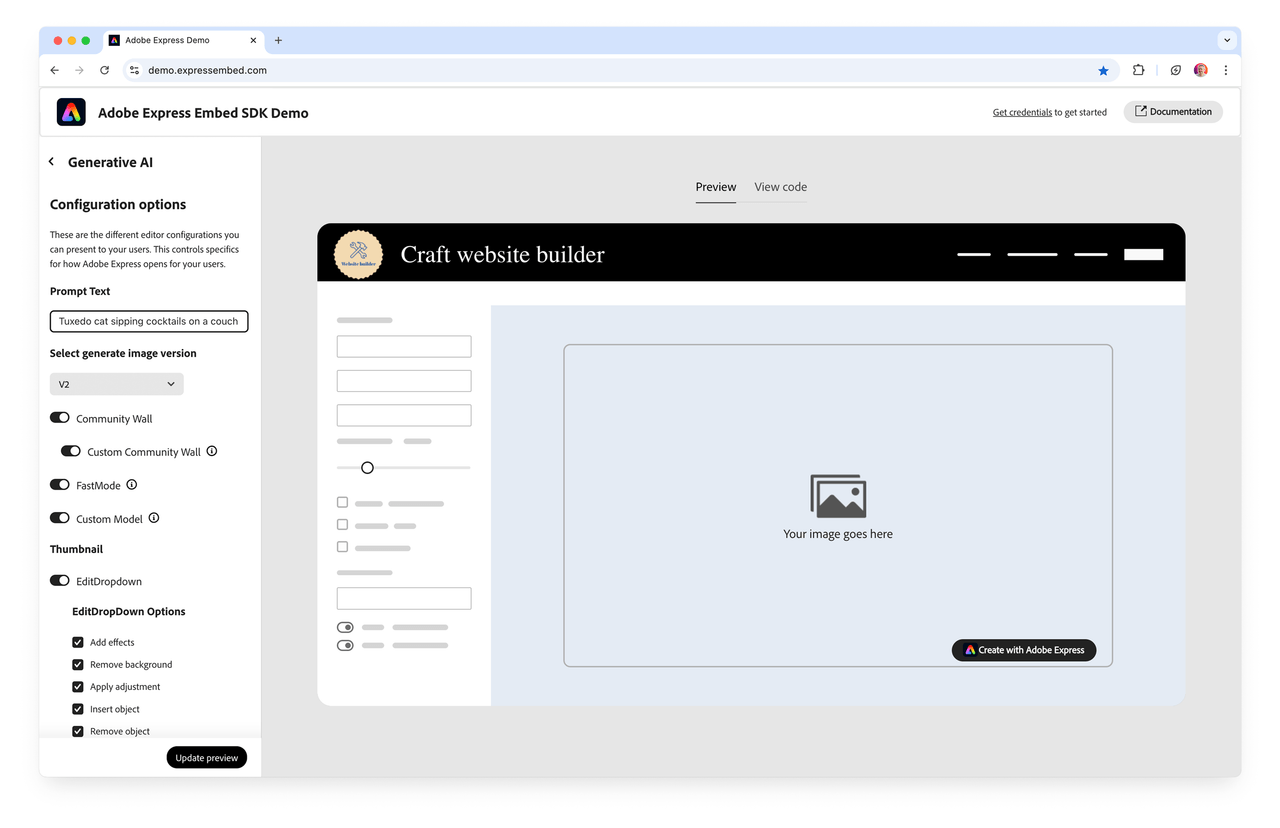

Try it out in the Demo App

The Adobe Express Embed SDK Demo App has been updated to showcase the new features, and it provides code snippets for each of the new configurations.
