HTML Elements

UXP core APIs let you create renditions but depending on whether you are writing scripts or plugins, you can create UI either by using HTML tags or just stick to JavaScript.

data-variant=info

data-slots=header, text1, text2
Scripts and plugins
In scripts, you only have the option to create UI from the .idjs script (JavaScript) file. Moreover, remember that scripts only allow you to create UI within a modal dialog.
In plugins, a panel can be created both ways - using HTML tags or JavaScript. However, command plugins behave similarly to scripts and can create only modal dialogs from JavaScript.

Let's take 'dialog' as an example and demonstrate both ways. You can extend the same principle to other HTML Elements

System requirements

Please make sure your local environment uses the following application versions before proceeding.

Using HTML

<!-- Provide a simple example using code snippets -->

data-slots=heading, code

data-repeat=3

data-languages=HTML, JavaScript, CSS

HTML

<button id="showDialog">Show Dialog</button>
<dialog id="sampleDialog">
    <div>
        <h1>Well hello!</h1>
        <p>A dialog built using HTML tags</p>
    </div>
</dialog>

JavaScript

const showDialogBtn = document.getElementById("showDialog");
showDialogBtn.addEventListener("click", showDialog);
function showDialog() {
    const dialog = document.getElementById("sampleDialog");
    dialog.show();
    dialog.addEventListener("cancel", () => {
        console.log("Dialog dismissed");
    });
}

CSS

#sampleDialog > div {
    display: flex;
    flex-direction: column;
    height: 300px;
    width: 400px;
    align-items: center;
}
#sampleDialog > div > p {
    margin-top: 30px;
}

Using only JavaScript

data-slots=heading, code

data-repeat=2

data-languages=HTML, JavaScript

HTML

<button id="showDialog">Show Dialog</button>

JavaScript

const showDialogBtn = document.getElementById("showDialog");
showDialogBtn.addEventListener("click", showDialog);
function showDialog() {
    // create dialog
    const dialog = document.createElement("dialog");

    const div = document.createElement("div");
    div.style.display = "flex";
    div.style.flexDirection = "column";
    div.style.height = "300px";
    div.style.width = "400px";
    div.style.alignItems = "center";

    const header = document.createElement("h1");
    header.textContent = "Well hello!!";
    div.appendChild(header);

    const para = document.createElement("p");
    para.textContent = "A dialog built using HTML tags";
    div.appendChild(para);

    dialog.appendChild(div);

    // show dialog
    document.body.appendChild(dialog).showModal();

    dialog.addEventListener("cancel", () => {
        console.log("Dialog dismissed");
    });
}

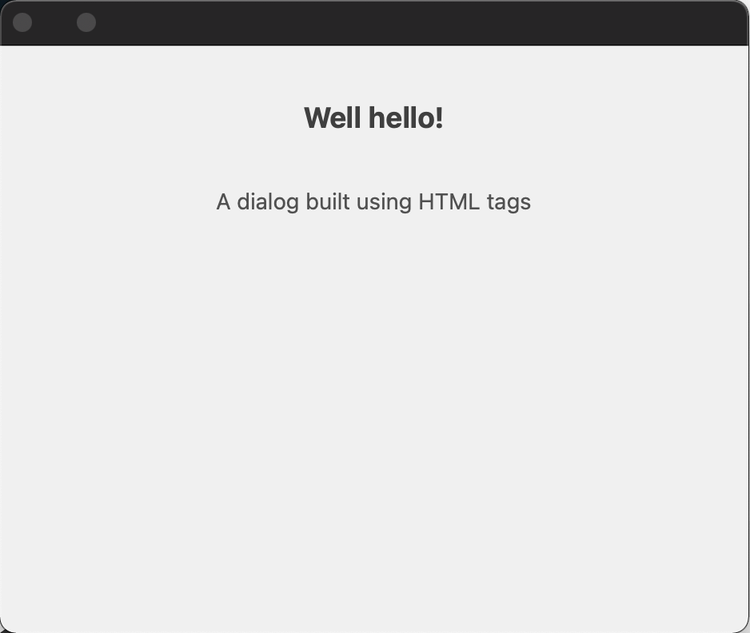

Sample dialog

Additional notes

Reference material
