Edit Design

The Edit Design workflow opens an existing document in a focused editor, where users can refine the design and, for print workflows, configure how the final document is exported.

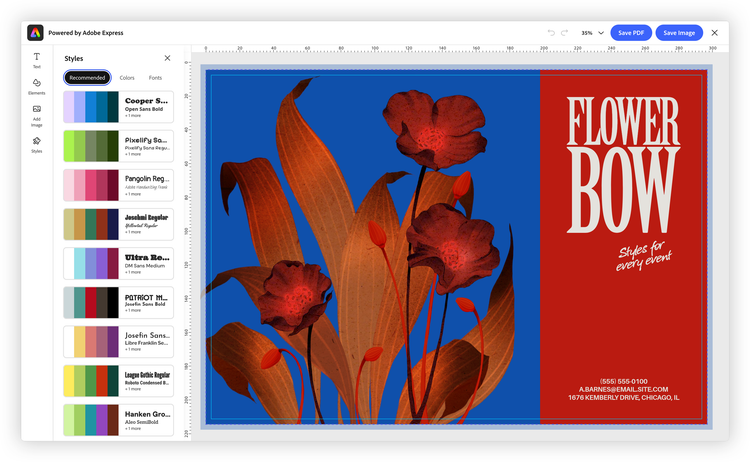

Edit Design workflow

How Edit Design works

Launch the workflow from the module object:

module.editDesign(
  docConfig: FDEEditDesignDocConfig,
  appConfig?: FDEEditDesignAppConfig,
  exportConfig?: ExportConfig,
  containerConfig?: ContainerConfig,
): void;

Unlike Create Design, the docConfig parameter is required—it tells the editor which document to open. The remaining parameters are optional and positional (pass undefined to skip one). exportConfig, containerConfig, and the shared appConfig.callbacks are covered in Shared configuration.

Choosing what to open

The docConfig parameter (of type FDEEditDesignDocConfig) identifies the document to load. Provide exactly one of the following:

Property
Opens
docId
an existing saved document—typically the docId returned by Create Design's onPublish
templateId
a specific template
asset
an image asset placed onto the canvas
const docConfig = { docId: "urn:aaid:sc:VA6C2:..." };

module.editDesign(docConfig, appConfig, exportConfig, containerConfig);

Please note that, by using the templateId, you can bypass the Template Browser and directly open a specific template in the editor.

Configuring the editor

Edit Design's appConfig (FDEEditDesignAppConfig) adds output controls that Create Design doesn't have yet:

const appConfig = {
  variant: "print",

  // On-canvas print guides
  editorGuideConfig: {
    showBleed: true,
    showMargins: true,
    showRulers: true,
  },

  // Print-ready PDF output
  pdfPrintConfig: {
    includeCropMarks: true,
    includeBleed: true,
    colorMode: "cmyk",
    cmykColorProfile: "Coated GRACoL 2006 (ISO 12647-2:2004)",
  },

  allowedFileTypes: ["application/pdf"],
};

When variant is "print", print-oriented guides and defaults can be enabled; this is the key contrast with Create Design, which cannot pass these output settings yet.

Handling the result

Edit Design uses the same shared onPublish callback as Create Design—it fires with the exported asset and metadata, and you return a publish status. See Shared configuration.
